Instant payments and cross-border transfers

Design for finality, payee risk, foreign exchange, and international handoffs.

The concept at a glance

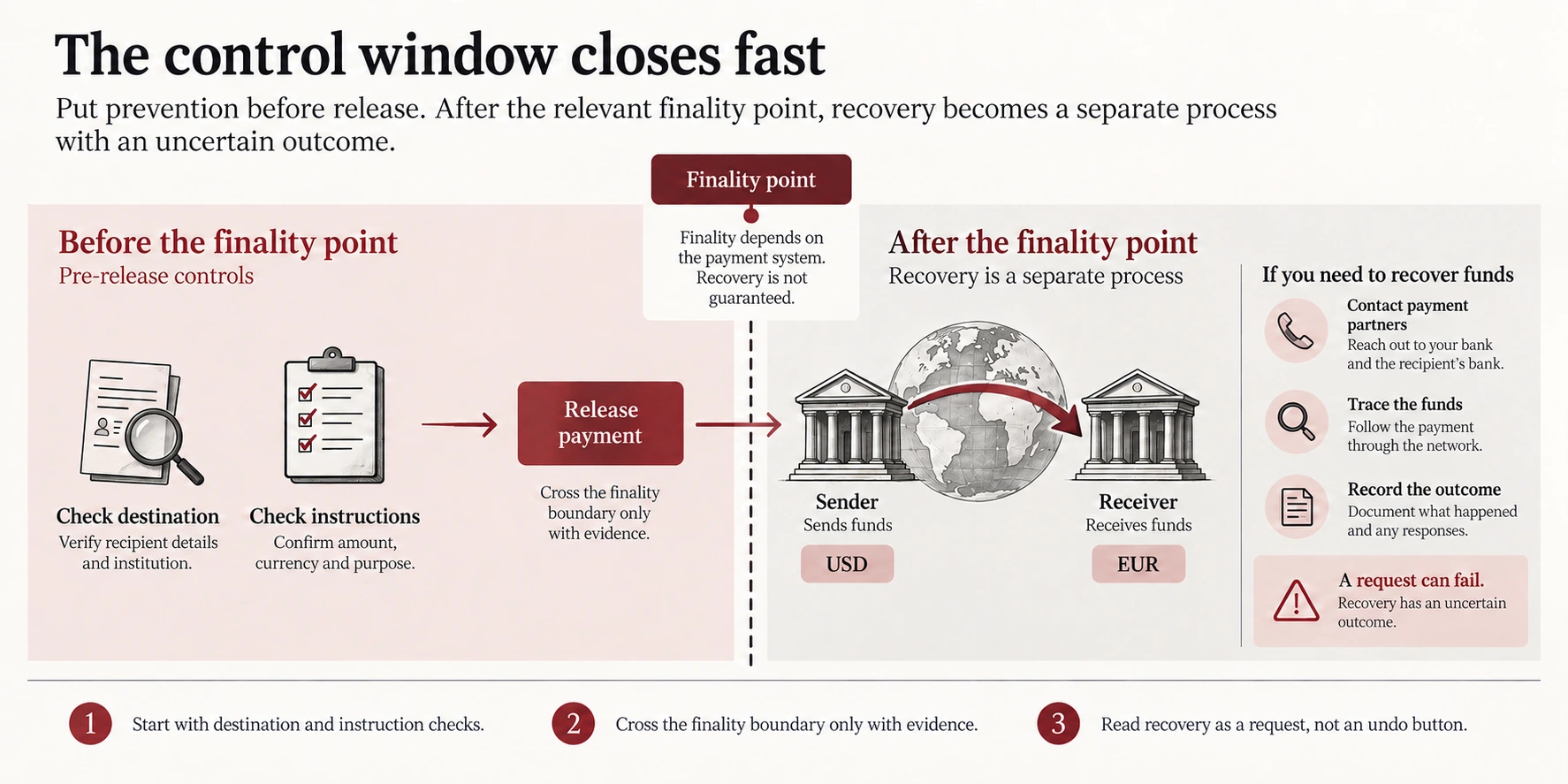

The control window closes fast

A vertical finality boundary divides pre-release controls from post-release recovery. Sender and receiver currencies have separate labels. Recovery instructions say to contact payment partners, trace the funds, and record the outcome. The statement that a request can fail makes recovery uncertainty explicit.

Enlarge to read every label and explore the connections

Put prevention before release. After the relevant finality point, recovery becomes a separate process with an uncertain outcome.

  1. Start with destination and instruction checks.

  2. Cross the finality boundary only with evidence.

  3. Read recovery as a request, not an undo button.

A customer says the transfer is urgent. The risk analyst says that is exactly why it deserves attention. Instant movement removes waiting time for honest people and recovery time for everyone else. Cross-border movement adds more places where messages, currencies, and responsibilities can diverge.

Fast rails change control timing

Fast rails change control timing — the flow
Fast rails change control timing Fast rails change control timing — the flow Follow the sequence. Reconcile authoritative status. Prepare Verify instruction and destination Release Submit the approved transfer Confirm Reconcile authoritative status
  1. PrepareVerify instruction and destination
  2. ReleaseSubmit the approved transfer
  3. ConfirmReconcile authoritative status
Follow the sequence. Reconcile authoritative status. Chapter sources · Open image

A short transfer window compresses the time available to stop a payment. Build the control path before release: validate the destination, check applicable restrictions, authenticate the instruction, and assess signs of manipulation. A slow manual queue cannot protect a payment already sent.

Distinguish acceptance by your application from acceptance and settlement by the payment system. Store the authoritative identifiers and timestamps for each. A timeout leaves uncertainty, not proof of failure. Recovery requests may still be possible through the relevant participants, but the user interface must not promise a reversible transfer when the rail does not provide that promise.

A transfer can cross several boundaries: customer authentication, the platform’s decision service, a sending institution, a payment system, and a receiving institution. Each boundary has its own acknowledgement. The platform must distinguish “the next system accepted my request” from “the intended beneficiary received usable funds.” A timeout is especially dangerous because the absence of a reply is not evidence that no transfer occurred.

The safe recovery path begins with a stable payment identifier and a status inquiry or reconciliation process supported by the actual integration. Sending a new transfer with a new identifier merely to make the screen stop spinning can create a second financial obligation. The product needs an honest pending state and a clear owner for resolving it.

Inside the mechanism. Fast execution compresses the time available for useful intervention. Budget the full path from customer intent through evidence retrieval, policy evaluation, and durable commitment. A required control must complete at the appropriate point in that path. After execution, the system needs a recovery workflow with realistic authority and partner interfaces. Calling that workflow a recall does not guarantee that the funds can be recovered. Show the customer the actual status and uncertainty.

A concrete example. A fast transfer can leave the sender while the platform waits for an acknowledgement. A timeout says the reply is missing, not that the financial action failed. 210 intended requests generate 220 processing attempts under this retry assumption. Capacity is 245 attempts per interval, and the critical path consumes 150 ms of a 180 ms budget. The request-based SLO view observes 100 bad requests against an illustrative allowance of 100. These measurements must be connected to the financial effect and control evidence before declaring recovery.

When the assumption fails. The integration retries a timed-out action with a new business identifier. Keep the original action identity, query its status, and reconcile before creating another effect. The following worked sequence shows the reference condition, a stress condition, and a response condition with explicit synthetic data. These are comparative assumptions, not measured causal effects.

Follow a worked case3 conditions · 36 figures

A fast transfer can leave the sender while the platform waits for an acknowledgement. A timeout says the reply is missing, not that the financial action failed.

Instant-transfer status path: reference condition figure preview01Reference conditionInstant-transfer status pathInstant-transfer status path: failure and stress figure preview02Failure and stressInstant-transfer status pathInstant-transfer status path: controlled response figure preview03Controlled responseInstant-transfer status path
Fast rails change control timing — the distinction
Fast rails change control timing Fast rails change control timing — the distinction These concepts answer different questions. Read each definition in the context of the section. Timeout Result is unknown Failure Evidence says the action failed
Timeout
  • Result is unknown
Failure
  • Evidence says the action failed
These concepts answer different questions. Read each definition in the context of the section. Chapter sources · Open image
Instant transfer journal
Fast rails change control timing Instant transfer journal Fictional teaching record. Avoid duplicate value movement. Instant transfer journal Illustrative data; not a real customer record or a prescribed policy. Client timed out Local observation Rail reference present Investigate authoritative state Retry new transfer blocked Avoid duplicate value movement Unknown is not the same as failed
Fictional educational excerpt / Not for execution

Instant transfer journal

Illustrative data; not a real customer record or a prescribed policy.

  1. Clienttimed out

    Local observation

  2. Rail referencepresent

    Investigate authoritative state

  3. Retrynew transfer blocked

    Avoid duplicate value movement

Unknown is not the same as failed

Fictional teaching record. Avoid duplicate value movement. Chapter sources · Open image
Fast rails change control timing — control and failure modes
Fast rails change control timing Fast rails change control timing — control and failure modes Unknown is not the same as failed. The branches show why alternative designs fail. Control design Resolve status using the original reference. Unknown is not the same as failed. Failure mode 1 Send a new payment immediately. This can duplicate value movement. avoid Failure mode 2 Mark the payment refunded. No refund evidence exists. avoid Failure mode 3 Delete the first reference. That removes the reconciliation path. avoid
Control design

Resolve status using the original reference. Unknown is not the same as failed.

Failure mode 1avoid
Send a new payment immediately. This can duplicate value movement.
Failure mode 2avoid
Mark the payment refunded. No refund evidence exists.
Failure mode 3avoid
Delete the first reference. That removes the reconciliation path.
Unknown is not the same as failed. The branches show why alternative designs fail. Chapter sources · Open image

Protect the payee change

Protect the payee change — the flow
Protect the payee change Protect the payee change — the flow Follow the sequence. Apply approved authority. Change New destination arrives Verify Use an independent established channel Release Apply approved authority
  1. ChangeNew destination arrives
  2. VerifyUse an independent established channel
  3. ReleaseApply approved authority
Follow the sequence. Apply approved authority. Chapter sources · Open image

A real user can be persuaded to pay a wrong destination. Strong login controls do not solve every scam. Place attention on destination changes, first payments, unusual urgency, and context that differs from the established relationship. Avoid blaming customers for a workflow that makes verification difficult.

For business payments, a second authorized reviewer and an independent callback can help verify a changed bank instruction. Use a contact established before the change request. Calling the number in a suspicious email merely asks the same source to confirm itself. Record the verification method without storing unnecessary personal details.

Inside the mechanism. A payee change is a change in authority and destination, not merely an edit to a contact label. Retain the old and new destination, initiator, authentication context, and effective time. Bind any approval to the exact destination and relevant operation so it cannot authorize a different transfer later. Consider the combined sequence of session change, new payee, limit change, and payment. Separate signals may look ordinary while their ordering creates the important risk.

A concrete example. The customer adds a destination and immediately sends a large transfer. The useful control must act before value becomes difficult to recover. The rule flags 298 of 14,000 new-payee transfers. Of those flags, 90 meet the synthetic target, giving 30.2% precision. It misses 22 target events. Under the stated cost assumptions, residual loss and operating friction total $29,256. The important result is the connection between the population, action, capacity, and outcome—not one isolated score.

When the assumption fails. A new destination is displayed under a familiar contact label. Bind evidence and customer confirmation to the actual destination and amount. The following worked sequence shows the reference condition, a stress condition, and a response condition with explicit synthetic data. These are comparative assumptions, not measured causal effects.

Follow a worked case3 conditions · 36 figures

The customer adds a destination and immediately sends a large transfer. The useful control must act before value becomes difficult to recover.

New-payee intervention: reference condition figure preview01Reference conditionNew-payee interventionNew-payee intervention: failure and stress figure preview02Failure and stressNew-payee interventionNew-payee intervention: controlled response figure preview03Controlled responseNew-payee intervention
Protect the payee change — the distinction
Protect the payee change Protect the payee change — the distinction These concepts answer different questions. Read each definition in the context of the section. Same-channel confirmation Repeats the original trust weakness Independent confirmation Uses a separately established route
Same-channel confirmation
  • Repeats the original trust weakness
Independent confirmation
  • Uses a separately established route
These concepts answer different questions. Read each definition in the context of the section. Chapter sources · Open image
Vendor change record
Protect the payee change Vendor change record Fictional teaching record. Separation of duties. Vendor change record Illustrative data; not a real customer record or a prescribed policy. Requested by email Untrusted change channel Callback existing directory number Independent source Approval second authorized reviewer Separation of duties It is independent of the change request
Fictional educational excerpt / Not for execution

Vendor change record

Illustrative data; not a real customer record or a prescribed policy.

  1. Requested byemail

    Untrusted change channel

  2. Callbackexisting directory number

    Independent source

  3. Approvalsecond authorized reviewer

    Separation of duties

It is independent of the change request

Fictional teaching record. Separation of duties. Chapter sources · Open image
Protect the payee change — control and failure modes
Protect the payee change Protect the payee change — control and failure modes It is independent of the change request. The branches show why alternative designs fail. Control design The previously verified directory number. It is independent of the change request. Failure mode 1 The number in the change email. It comes from the same possibly compromised source. avoid Failure mode 2 The first number in a search ad. It is not established vendor evidence. avoid Failure mode 3 No callback because the logo matches. A logo is easy to reproduce. avoid
Control design

The previously verified directory number. It is independent of the change request.

Failure mode 1avoid
The number in the change email. It comes from the same possibly compromised source.
Failure mode 2avoid
The first number in a search ad. It is not established vendor evidence.
Failure mode 3avoid
No callback because the logo matches. A logo is easy to reproduce.
It is independent of the change request. The branches show why alternative designs fail. Chapter sources · Open image

Model the currency legs

Model the currency legs — the flow
Model the currency legs Model the currency legs — the flow Follow the sequence. Account for rounding and differences. Quote Record rate fees and expiry Execute Track each currency leg Reconcile Account for rounding and differences
  1. QuoteRecord rate fees and expiry
  2. ExecuteTrack each currency leg
  3. ReconcileAccount for rounding and differences
Follow the sequence. Account for rounding and differences. Chapter sources · Open image

A cross-border transfer can contain a sender amount, fees, a conversion rate, a receiver amount, and multiple settlement legs. Always identify the currency of each amount and the time of the quote. Adding 100 dollars to 100 euros does not produce a meaningful 200-unit balance.

Use decimal-safe arithmetic or integer minor units with currency metadata. Some currencies use different minor-unit conventions. Treat rounding, quote expiry, and rate changes as explicit events. If a transfer fails after one leg executes, the unwind can create a foreign-exchange gain or loss even when the original principal is returned.

For a USD-to-EUR payment, the customer quote, the currency purchase, and the beneficiary credit can occur at different times. The platform must define which rate is binding, who bears movement before completion, and what happens if one leg succeeds while another fails. A compensating transaction may require a new exchange at a different rate. It is not necessarily the exact reverse of the original trade. Track principal, fees, rate source, quote expiry, and the link between both currency legs so support and treasury can explain the final amount.

Inside the mechanism. A cross-currency payment has at least two amounts, a rate convention, rounding rules, fees, and timing. Store the original currency values; do not repeatedly reconstruct them from a rounded converted total. State whether a quoted rate is units of currency B per A or the reverse. Reconcile each currency leg independently before combining the economic result. A correct converted customer quote does not establish that both settlement legs completed.

A concrete example. A cross-border product connects a customer quote, a currency conversion, and beneficiary credit. This worked ledger uses one USD funding leg so unlike currencies are never added. The batch begins with $155,000 of instructions and $148,800.00 of captured value. At the observation cutoff, $4,464.00 remains pending. After the stated refunds, fees, and restrictions, $120,825.60 is available for payout. The unresolved instruction count is 2; an unknown external result is handled separately from a known decline.

When the assumption fails. The beneficiary leg fails after the funding leg succeeds. Track the legs, quote terms, compensation transaction, and currency units separately. The following worked sequence shows the reference condition, a stress condition, and a response condition with explicit synthetic data. These are comparative assumptions, not measured causal effects.

Follow a worked case3 conditions · 36 figures

A cross-border product connects a customer quote, a currency conversion, and beneficiary credit. This worked ledger uses one USD funding leg so unlike currencies are never added.

USD-to-EUR payment legs: reference condition figure preview01Reference conditionUSD-to-EUR payment legsUSD-to-EUR payment legs: failure and stress figure preview02Failure and stressUSD-to-EUR payment legsUSD-to-EUR payment legs: controlled response figure preview03Controlled responseUSD-to-EUR payment legs
Model the currency legs — the distinction
Model the currency legs Model the currency legs — the distinction These concepts answer different questions. Read each definition in the context of the section. Quoted amount Expected value under stated terms Settled amount Actual value recorded for each leg
Quoted amount
  • Expected value under stated terms
Settled amount
  • Actual value recorded for each leg
These concepts answer different questions. Read each definition in the context of the section. Chapter sources · Open image
Illustrative conversion
Model the currency legs Illustrative conversion Fictional teaching record. Before any stated fees. Illustrative conversion Illustrative data; not a real customer record or a prescribed policy. Send 100 USD Starting amount Rate 0.90 EUR per USD Assumed teaching rate Receive 90 EUR Before any stated fees Multiply dollars by euros per dollar
Fictional educational excerpt / Not for execution

Illustrative conversion

Illustrative data; not a real customer record or a prescribed policy.

  1. Send100 USD

    Starting amount

  2. Rate0.90 EUR per USD

    Assumed teaching rate

  3. Receive90 EUR

    Before any stated fees

Multiply dollars by euros per dollar

Fictional teaching record. Before any stated fees. Chapter sources · Open image
Model the currency legs — control and failure modes
Model the currency legs Model the currency legs — control and failure modes Multiply dollars by euros per dollar. The branches show why alternative designs fail. Control design 90 EUR. Multiply dollars by euros per dollar. Failure mode 1 111.11 EUR. That reverses the stated rate. avoid Failure mode 2 190 EUR. Amounts and rates are not added. avoid Failure mode 3 90 USD. The result currency is euros. avoid
Control design

90 EUR. Multiply dollars by euros per dollar.

Failure mode 1avoid
111.11 EUR. That reverses the stated rate.
Failure mode 2avoid
190 EUR. Amounts and rates are not added.
Failure mode 3avoid
90 USD. The result currency is euros.
Multiply dollars by euros per dollar. The branches show why alternative designs fail. Chapter sources · Open image

Use jurisdiction and corridor context

Use jurisdiction and corridor context — the flow
Use jurisdiction and corridor context Use jurisdiction and corridor context — the flow Follow the sequence. Corridor-level outcomes. Identify Parties and route Assess Applicable legal and operational context Monitor Corridor-level outcomes
  1. IdentifyParties and route
  2. AssessApplicable legal and operational context
  3. MonitorCorridor-level outcomes
Follow the sequence. Corridor-level outcomes. Chapter sources · Open image

Sanctions and other legal restrictions depend on people, entities, ownership, location, activity, and the applicable jurisdiction. A country field alone cannot represent the full analysis. An intermediary may introduce additional duties or restrictions. Keep screening evidence tied to the actual parties and payment route.

A corridor is a defined origin-destination flow, often including currency and partner choices. Compare performance within corridors before drawing conclusions from a global average. A rise in total returns may reflect a shift toward a difficult corridor rather than a broken model. Segment carefully without treating nationality as proof of misconduct.

Inside the mechanism. A corridor is a set of relevant jurisdictions, institutions, currencies, products, and customer purposes. It is not a substitute for individual evidence. Route controls according to the applicable activity and restrictions, then use supported context to interpret the transaction. A change in intermediary or settlement route can change the required evidence even if the customer countries remain the same. Preserve the actual route and applicable decision version for later review.

A concrete example. The payment chain includes several financial institutions and commercial parties. Relevant jurisdiction and activity need context beyond a country label. The matcher returns 102 candidates from 9,200 records. It identifies 29 of 31 known fictional identity matches and misses 2. After scoped suppressions and stale-evidence returns, review demand is 82. The example keeps identity resolution, control availability, and the final legal disposition separate.

When the assumption fails. An intermediary drops identifying fields before screening. Validate party-field handoffs and keep identity matching distinct from legal disposition. The following worked sequence shows the reference condition, a stress condition, and a response condition with explicit synthetic data. These are comparative assumptions, not measured causal effects.

Follow a worked case3 conditions · 36 figures

The payment chain includes several financial institutions and commercial parties. Relevant jurisdiction and activity need context beyond a country label.

Corridor counterparty evidence: reference condition figure preview01Reference conditionCorridor counterparty evidenceCorridor counterparty evidence: failure and stress figure preview02Failure and stressCorridor counterparty evidenceCorridor counterparty evidence: controlled response figure preview03Controlled responseCorridor counterparty evidence
Use jurisdiction and corridor context — the distinction
Use jurisdiction and corridor context Use jurisdiction and corridor context — the distinction These concepts answer different questions. Read each definition in the context of the section. Country flag One piece of context Complete assessment Parties activity ownership and jurisdiction
Country flag
  • One piece of context
Complete assessment
  • Parties activity ownership and jurisdiction
These concepts answer different questions. Read each definition in the context of the section. Chapter sources · Open image
Corridor context record
Use jurisdiction and corridor context Corridor context record Fictional teaching record. Additional route participant. Corridor context record Illustrative data; not a real customer record or a prescribed policy. Origin country A Fictional location Destination country B Separate location Intermediary partner C Additional route participant Geography is only part of the analysis
Fictional educational excerpt / Not for execution

Corridor context record

Illustrative data; not a real customer record or a prescribed policy.

  1. Origincountry A

    Fictional location

  2. Destinationcountry B

    Separate location

  3. Intermediarypartner C

    Additional route participant

Geography is only part of the analysis

Fictional teaching record. Additional route participant. Chapter sources · Open image
Use jurisdiction and corridor context — control and failure modes
Use jurisdiction and corridor context Use jurisdiction and corridor context — control and failure modes Geography is only part of the analysis. The branches show why alternative designs fail. Control design Restricted parties and ownership can matter across locations. Geography is only part of the analysis. Failure mode 1 Only the currency matters. Party restrictions may still apply. avoid Failure mode 2 Every foreign payment is prohibited. Restrictions are not a universal foreign-payment ban. avoid Failure mode 3 The sender name never matters. Party identity can be central. avoid
Control design

Restricted parties and ownership can matter across locations. Geography is only part of the analysis.

Failure mode 1avoid
Only the currency matters. Party restrictions may still apply.
Failure mode 2avoid
Every foreign payment is prohibited. Restrictions are not a universal foreign-payment ban.
Failure mode 3avoid
The sender name never matters. Party identity can be central.
Geography is only part of the analysis. The branches show why alternative designs fail. Chapter sources · Open image

Design the recovery handoff

Design the recovery handoff — the flow
Design the recovery handoff Design the recovery handoff — the flow Follow the sequence. Post only evidenced recovery. Report Capture the exact transfer Escalate Reach the responsible partner Confirm Post only evidenced recovery
  1. ReportCapture the exact transfer
  2. EscalateReach the responsible partner
  3. ConfirmPost only evidenced recovery
Follow the sequence. Post only evidenced recovery. Chapter sources · Open image

When a customer reports a wrong transfer, collect the payment reference, amount, currency, time, destination, and explanation. Route the case through the appropriate bank or payment partner quickly. Preserve evidence and distinguish an attempted recovery from a completed recovery.

Give support a state vocabulary: reported, escalated, partner acknowledged, funds located, recovered, or unresolved. Do not display money as available until the ledger supports it. Operational speed matters, but so does a clear communication trail. A customer who hears funds recovered before settlement may spend money that the firm does not yet have.

Inside the mechanism. Recovery requires an owner who can reach the relevant institution, a stable transfer reference, the amount and currency, the reason for the request, and a record of responses. Keep requested, acknowledged, accepted, and funds recovered as separate states. A support ticket marked closed should not change the financial recovery amount. Reconcile any returned value to the original obligation and record whether the customer has already received a credit.

A concrete example. A customer reports a mistaken or deceptive transfer after it was sent. The platform can request recovery without promising that the receiving institution will return funds. The case identifies 563 eligible records from a source population of 640. The required workflow completes for 546, but 8 completed records miss the illustrative internal target. Another 17 remain incomplete. Communication evidence covers 541 generated notices. Scope, completion, timeliness, and delivery are four separate properties of the customer outcome.

When the assumption fails. Support marks a recall request as a successful reversal. Record request, acknowledgement, recovery amount, and unresolved outcome independently. The following worked sequence shows the reference condition, a stress condition, and a response condition with explicit synthetic data. These are comparative assumptions, not measured causal effects.

Follow a worked case3 conditions · 36 figures

A customer reports a mistaken or deceptive transfer after it was sent. The platform can request recovery without promising that the receiving institution will return funds.

Recovery request handoff: reference condition figure preview01Reference conditionRecovery request handoffRecovery request handoff: failure and stress figure preview02Failure and stressRecovery request handoffRecovery request handoff: controlled response figure preview03Controlled responseRecovery request handoff
Design the recovery handoff — the distinction
Design the recovery handoff Design the recovery handoff — the distinction These concepts answer different questions. Read each definition in the context of the section. Recall request An attempt to retrieve funds Recovered funds Value actually returned and recorded
Recall request
  • An attempt to retrieve funds
Recovered funds
  • Value actually returned and recorded
These concepts answer different questions. Read each definition in the context of the section. Chapter sources · Open image
Recovery case record
Design the recovery handoff Recovery case record Fictional teaching record. Do not credit as final. Recovery case record Illustrative data; not a real customer record or a prescribed policy. Request sent Action taken Partner acknowledged Receipt only Recovery unconfirmed Do not credit as final Acknowledgment is not returned value
Fictional educational excerpt / Not for execution

Recovery case record

Illustrative data; not a real customer record or a prescribed policy.

  1. Requestsent

    Action taken

  2. Partneracknowledged

    Receipt only

  3. Recoveryunconfirmed

    Do not credit as final

Acknowledgment is not returned value

Fictional teaching record. Do not credit as final. Chapter sources · Open image
Design the recovery handoff — control and failure modes
Design the recovery handoff Design the recovery handoff — control and failure modes Acknowledgment is not returned value. The branches show why alternative designs fail. Control design The request was received; recovery is unconfirmed. Acknowledgment is not returned value. Failure mode 1 All money is back. That overstates the evidence. avoid Failure mode 2 The original payment never happened. The recall does not erase it. avoid Failure mode 3 The case must be deleted. The record remains necessary. avoid
Control design

The request was received; recovery is unconfirmed. Acknowledgment is not returned value.

Failure mode 1avoid
All money is back. That overstates the evidence.
Failure mode 2avoid
The original payment never happened. The recall does not erase it.
Failure mode 3avoid
The case must be deleted. The record remains necessary.
Acknowledgment is not returned value. The branches show why alternative designs fail. Chapter sources · Open image

Chapter connections

This chapter builds on ACH, bank debits, and returns. Continue with Ledgers, reconciliation, and settlement risk to follow the next part of the system. Use the glossary for terminology and risk mathematics for formulas and worked calculations.

Sources

Reviewed 2026-09-17
  1. Federal Reserve: payment systems
  2. Federal Reserve: Fedwire finality and settlement
  3. OFAC: A Framework for Compliance Commitments
